jumpsever应用举例[0]

Posted on 2023年11月14日2025年5月6日 by

本篇是部署jumpserver堡垒机(社区版)的具体实战应用。

主要需求:

1)协助销售交付之前开发的工业软件,加速商业谈判

2)用户可以在多个工业软件选择想要的模板,禁止软件复制



其他已知:

1)堡垒机已经托管多个资产。

2)账户需要隔离

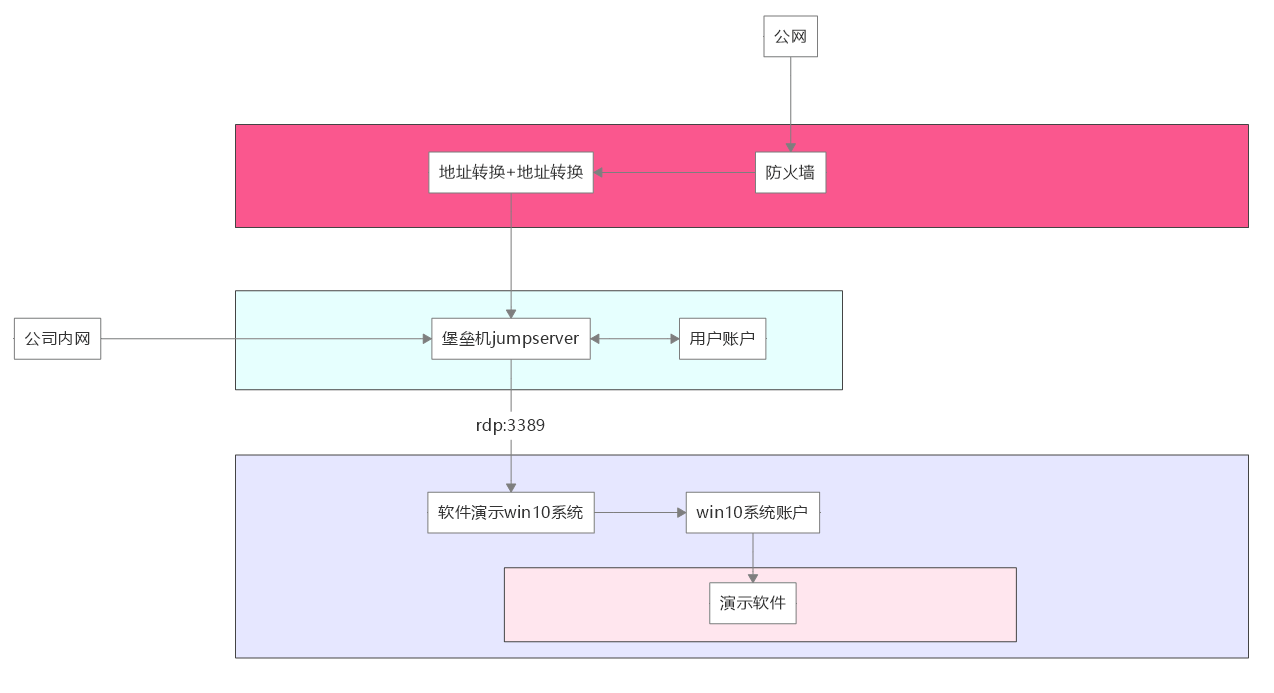

  • 架构设计



  • 设置步骤

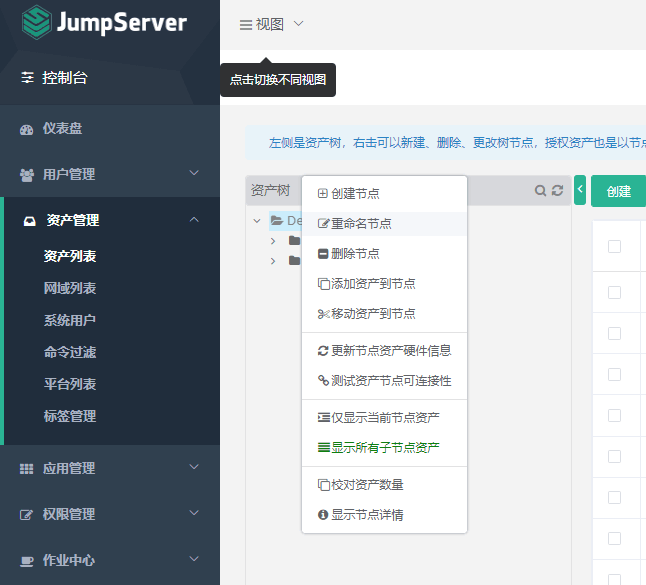

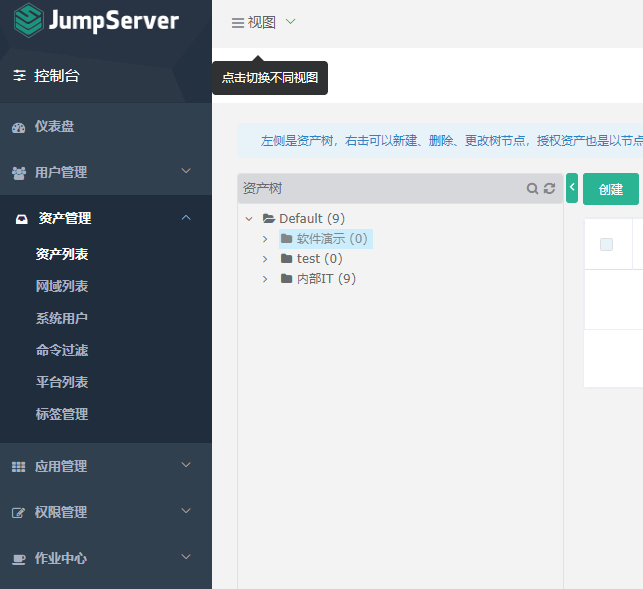

1)创建资产节点

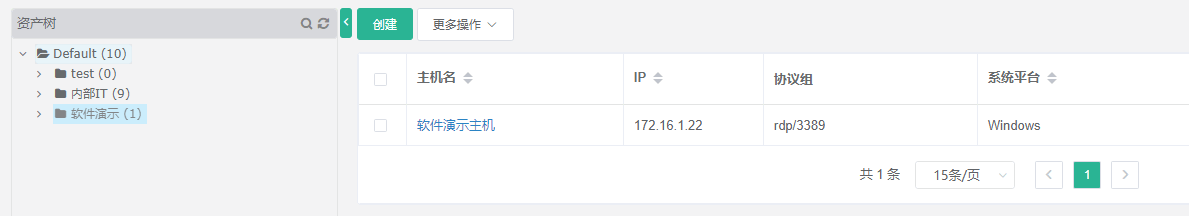

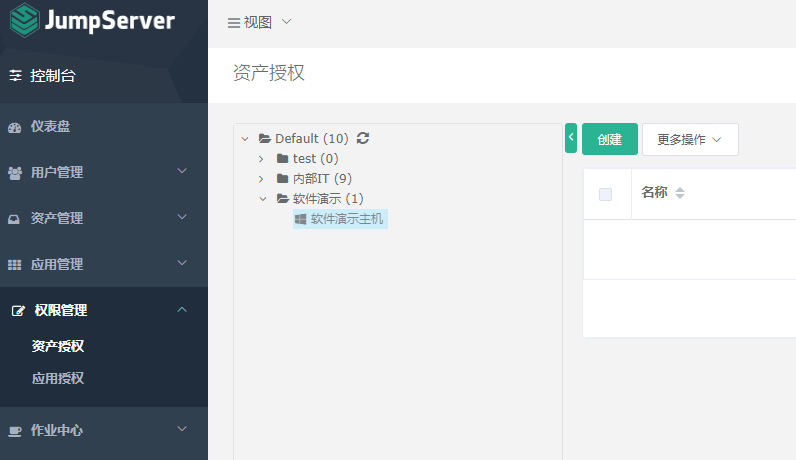

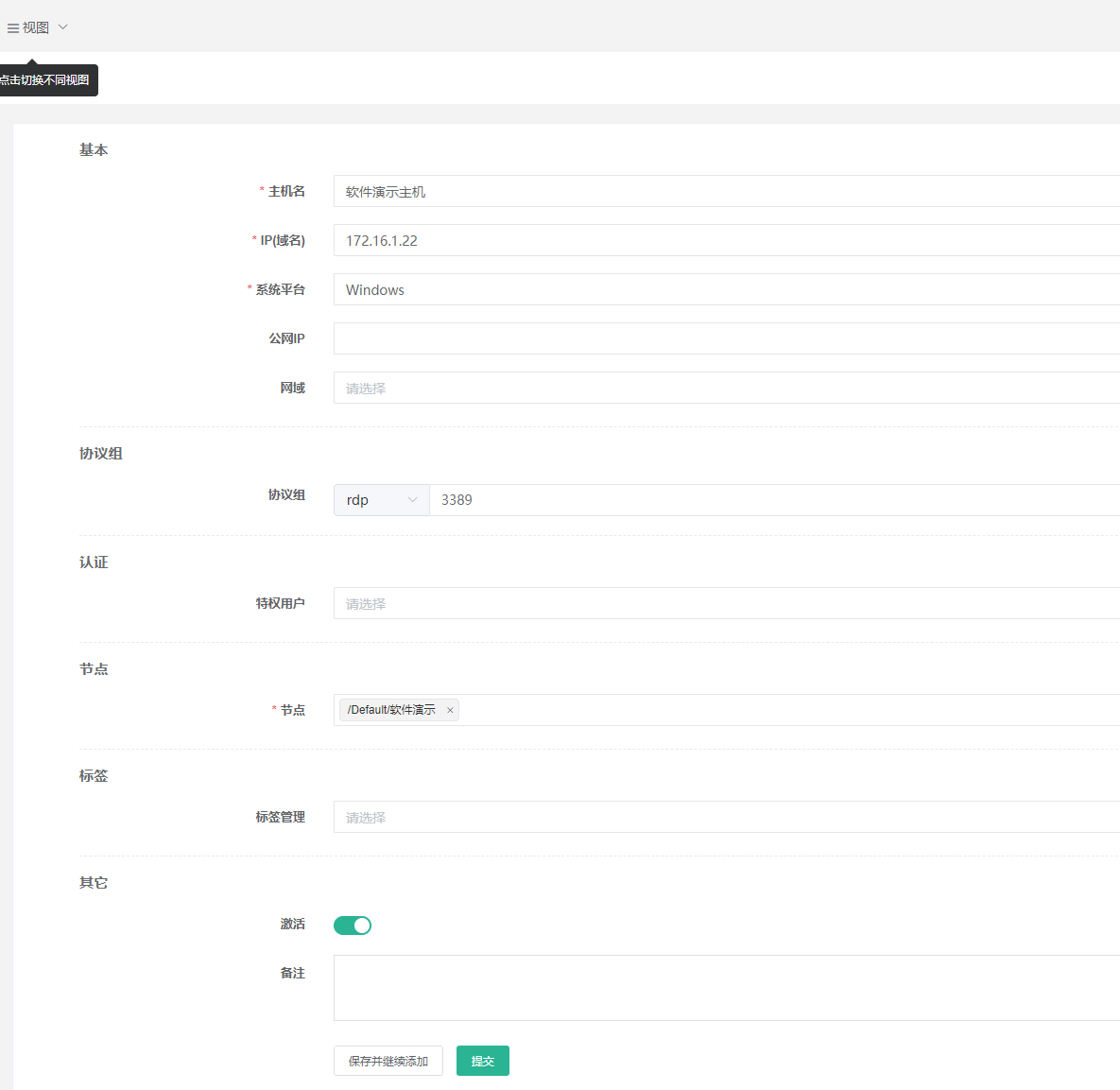

2)创建和添加资产

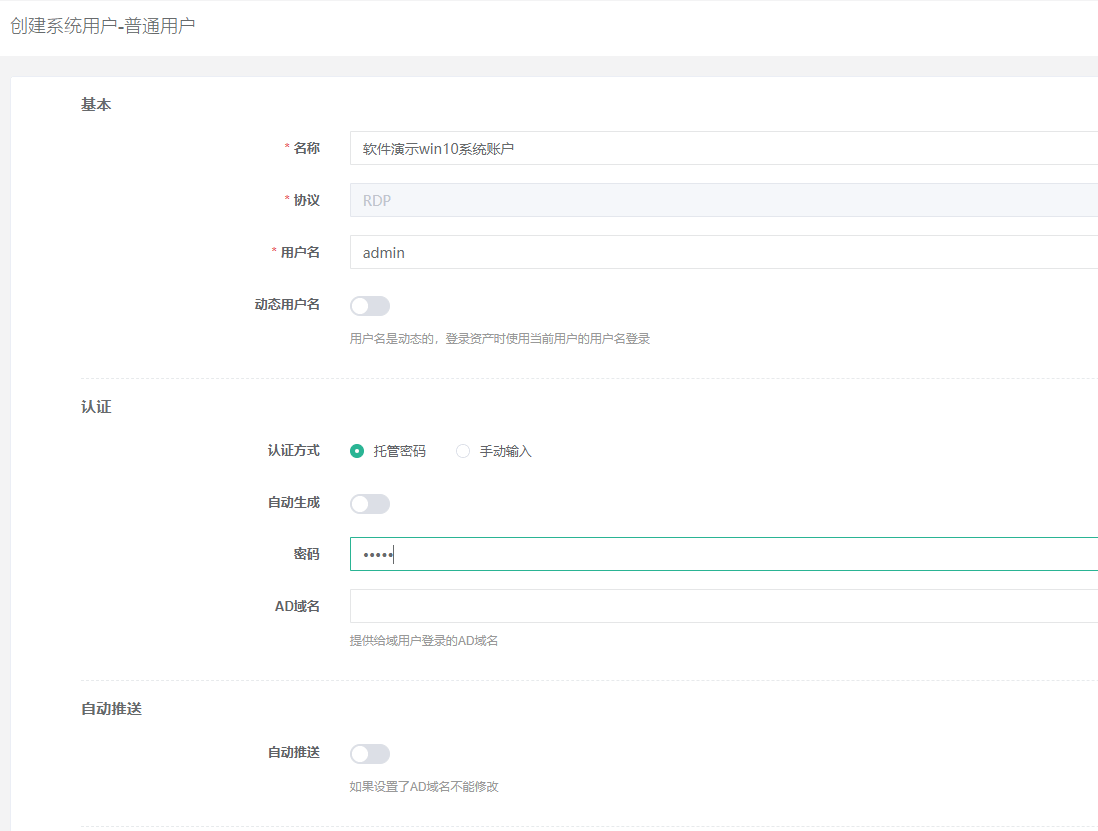

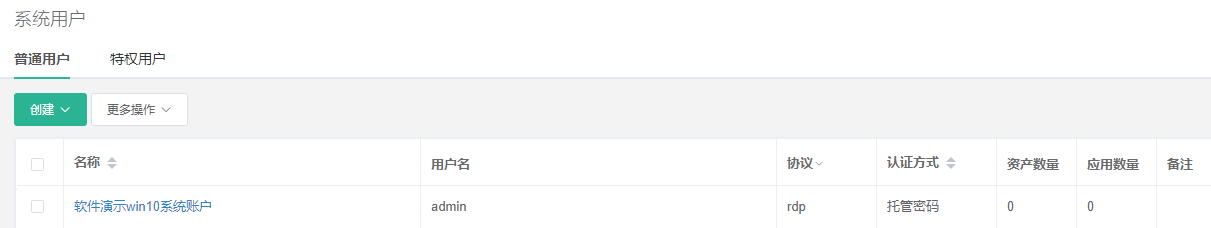

2)添加资产的系统账户

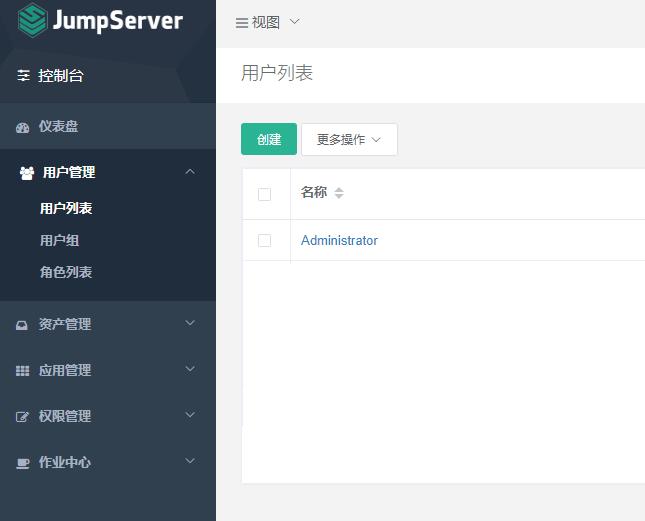

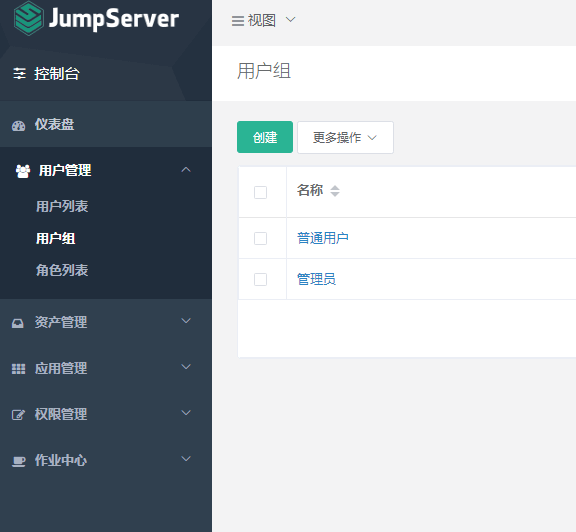

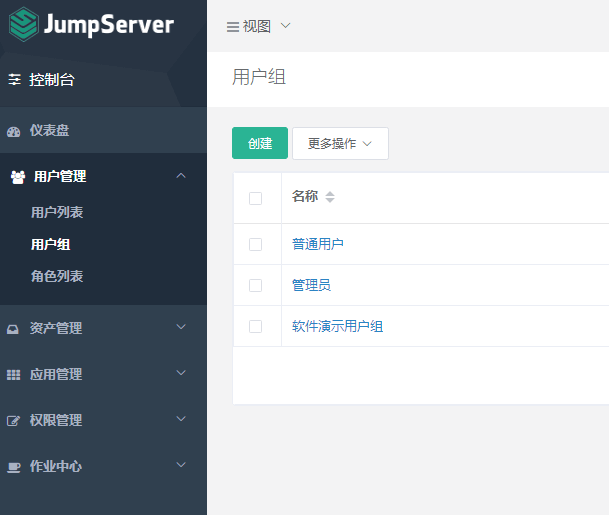

3)创建jumpserver用户组

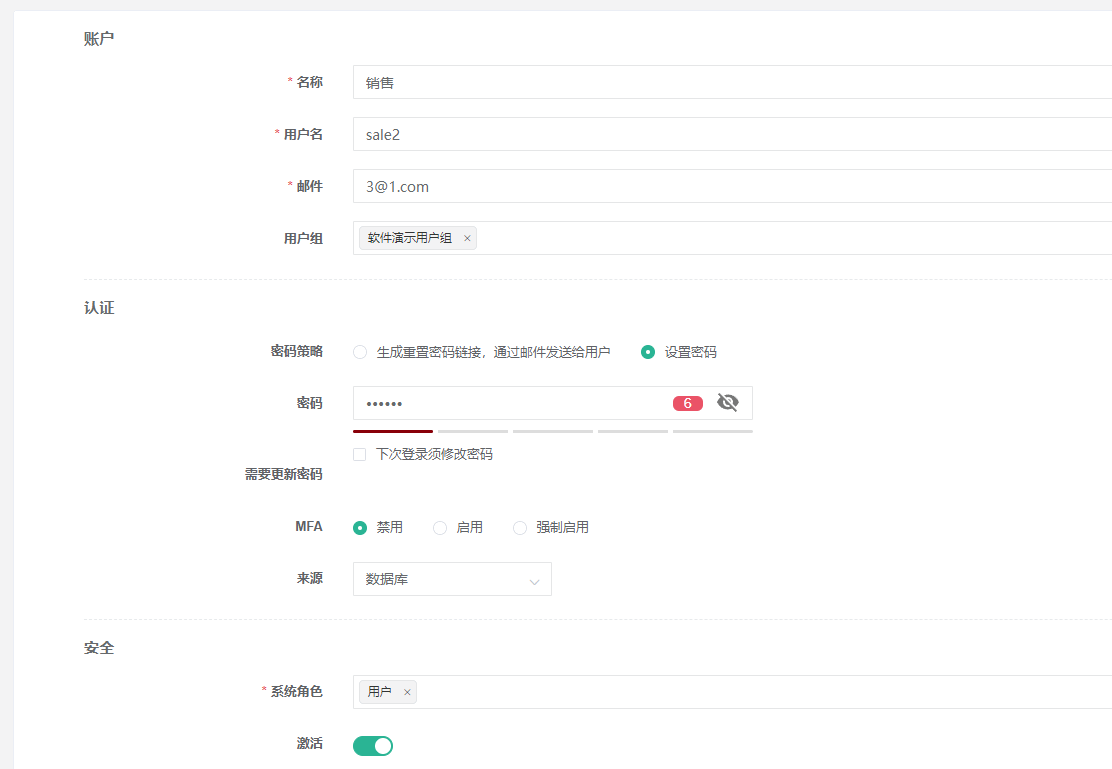

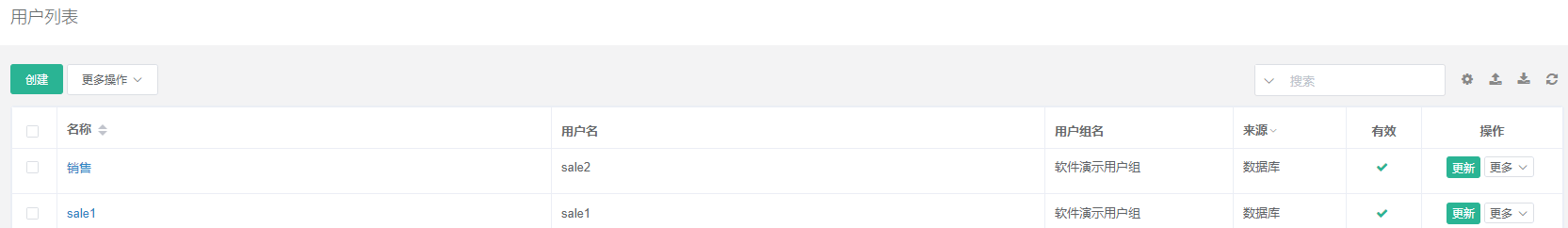

4)创建用户

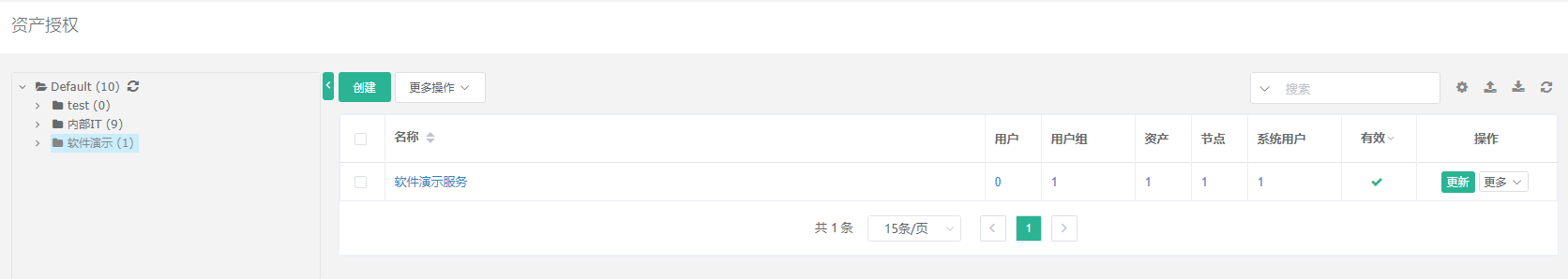

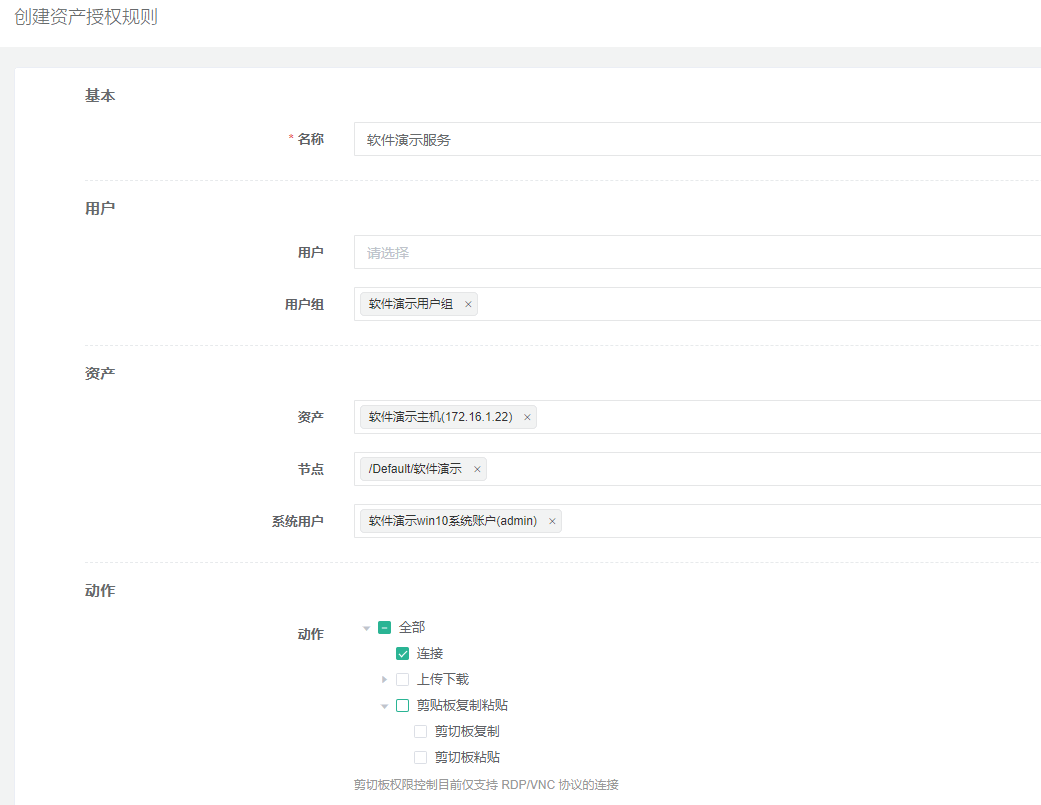

5)资产授权

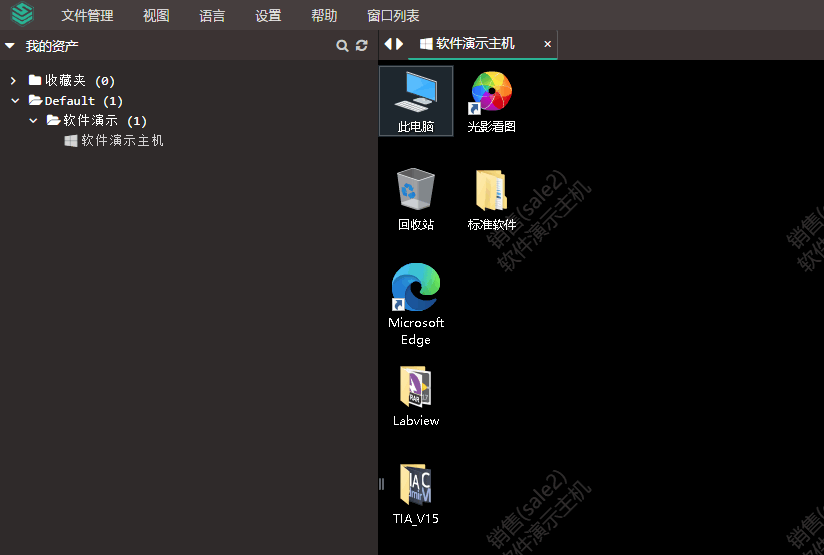

6)测试

测试通过

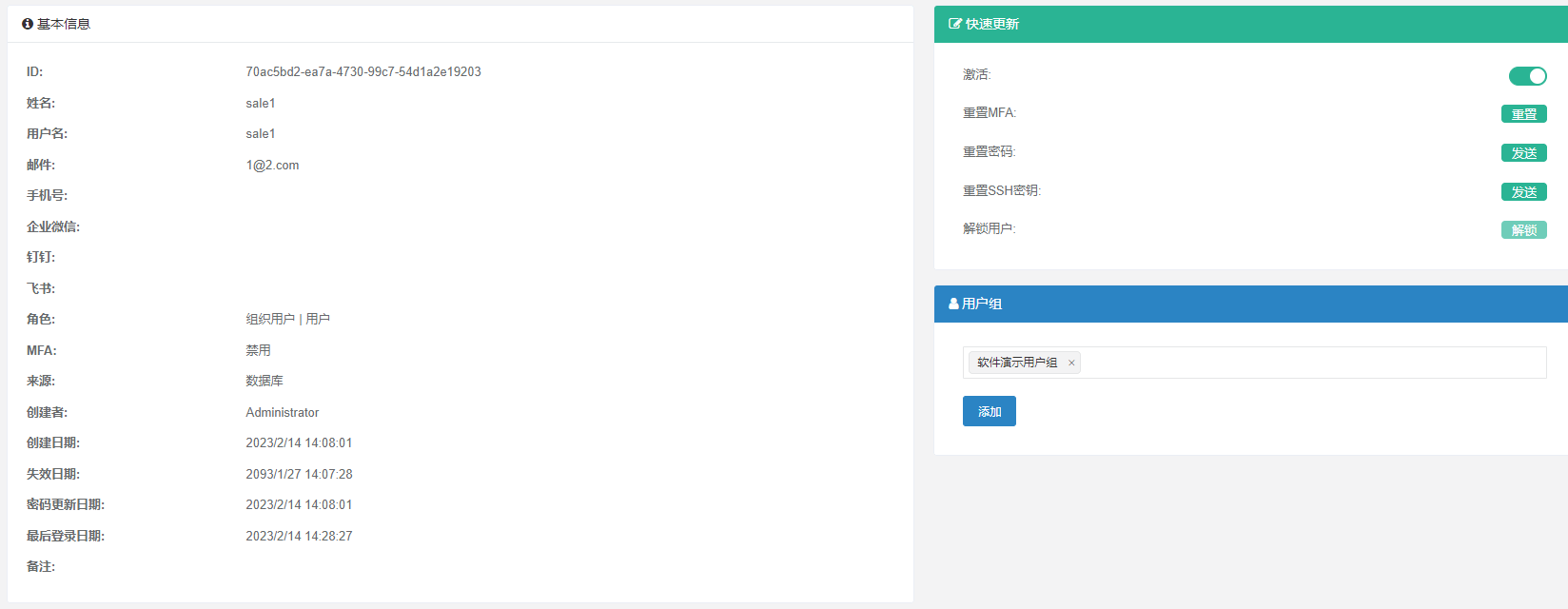

7)添加新的用户到软件组

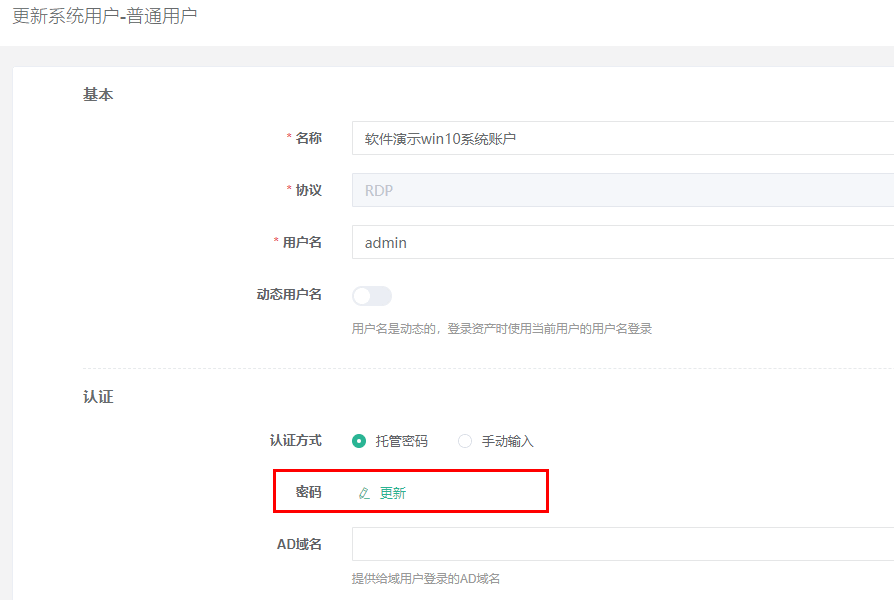

8)更新资产的系统密码

  • 小结

系统的优点:

1)jumpserver堡垒机能够将资产的使用和账户管理进行分拆。

2)用户的操作可以记录和回溯,

3)将软件的交付和演示简单化,并且避免了平面图文的不直观

系统的缺陷:

1)用户操作会导致原有系统的文件丢失,需要定期恢复系统

2)不支持多个用户同时操作软件



补充说明:

1)在局域网部署的jumpserver为了能够给公网用户使用需要在防火墙上开放相应的端口映射关系。

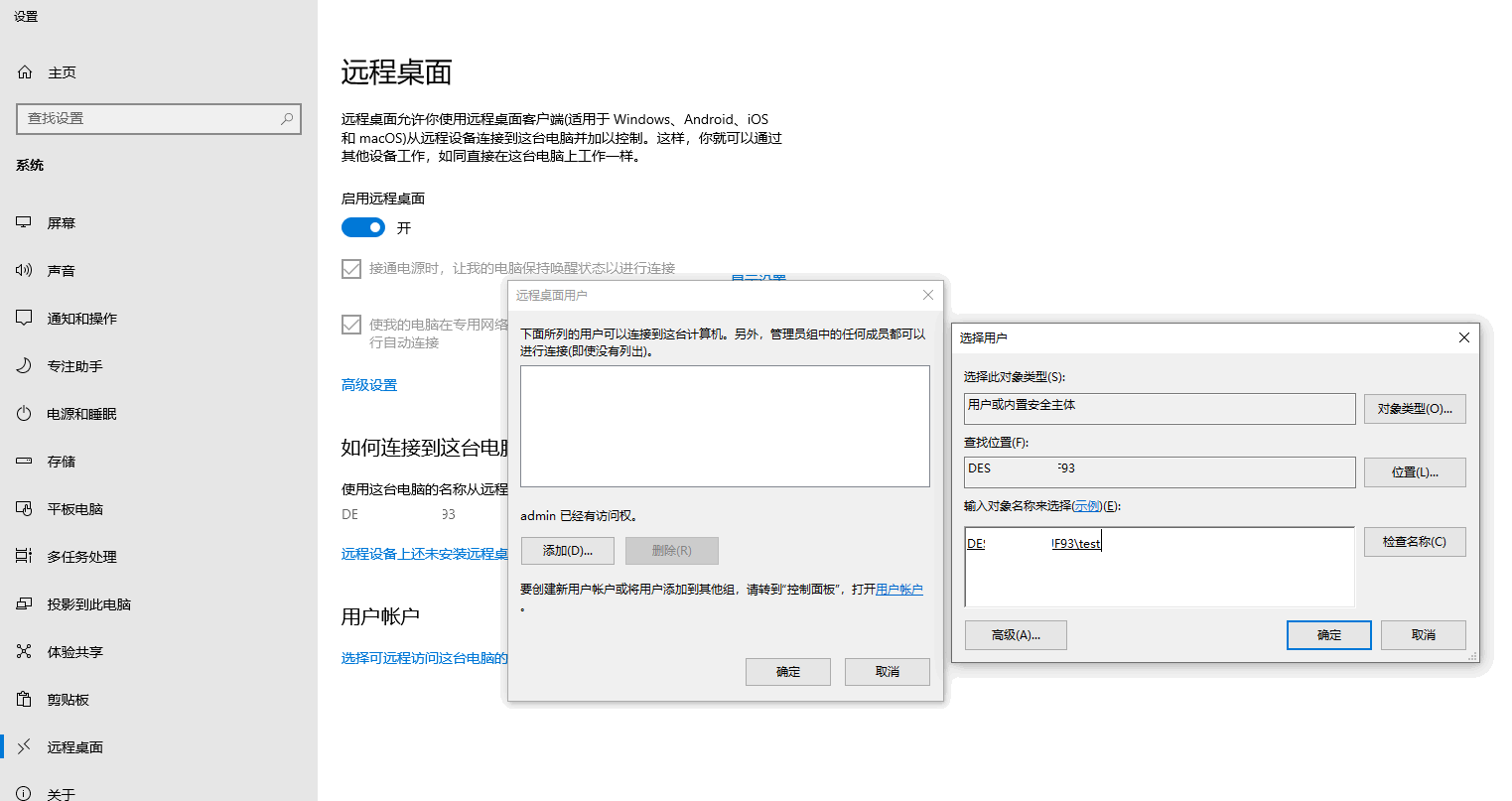

2)破解win10 RDP限制后的更改,RDP设置参考多人同时RDP远程一台win10桌面

由于从jumpserver连接到win10下的数量不再有限制,因此可以根据jumpserver账户开通各自独立的win10账号,实现一人一账号对应表。

主要更改如下:

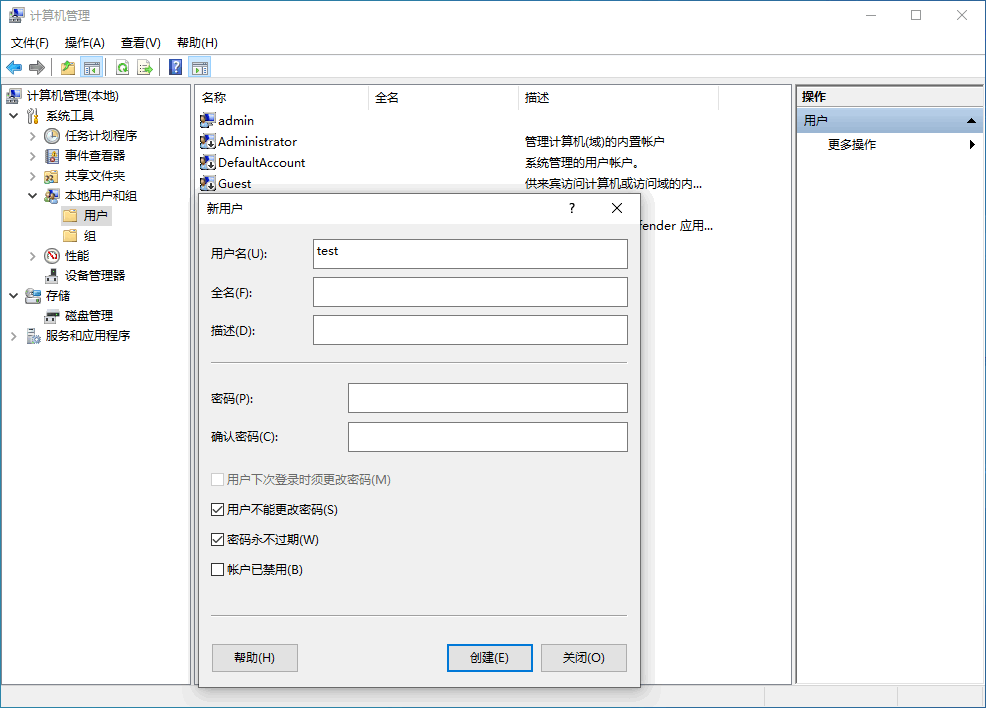

A)win10上开通账号

B)jumpserver上开通各个账号的系统账号

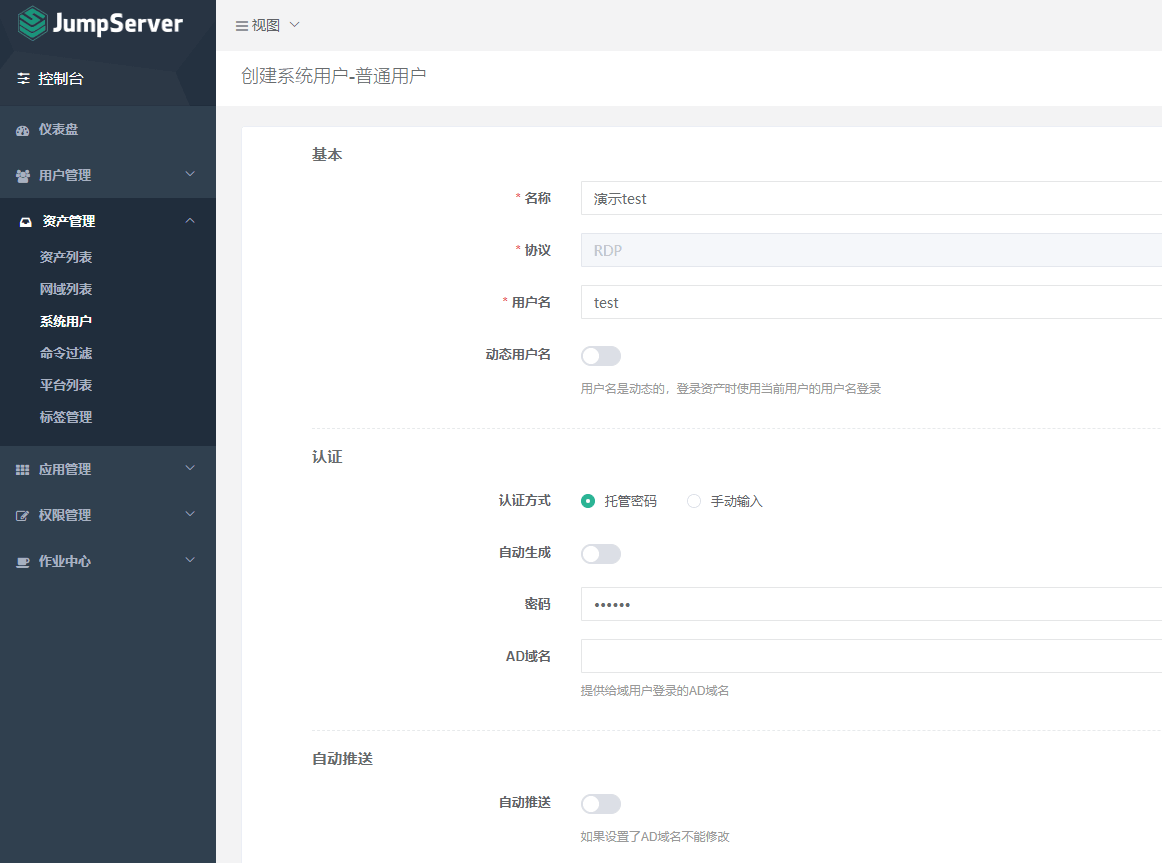

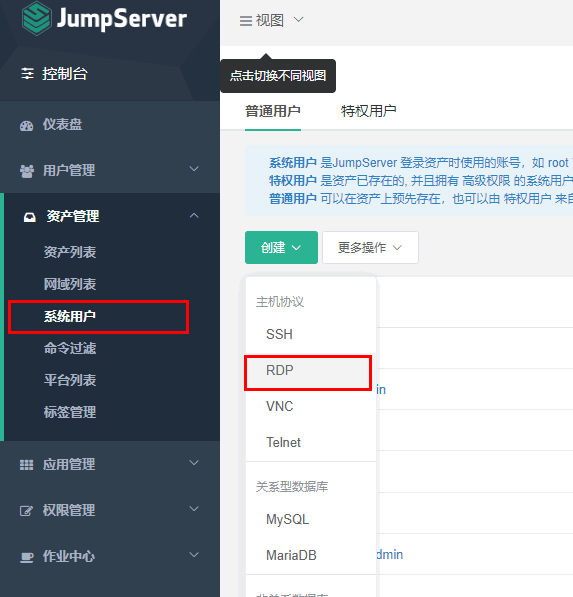

创建系统用户

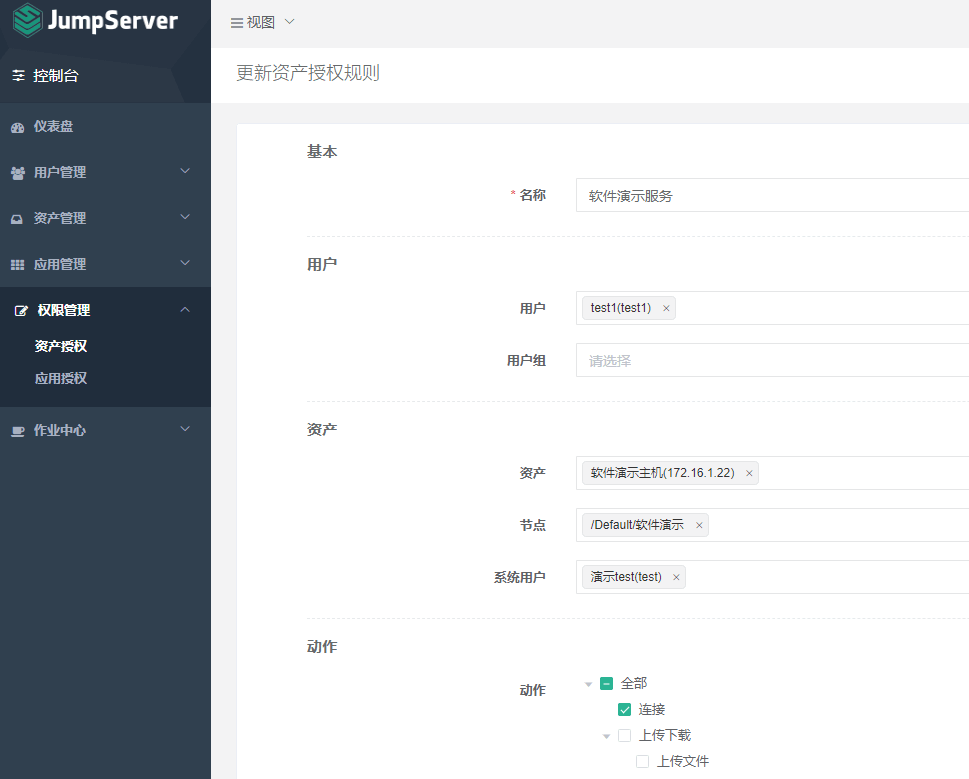

单个授权(不再按照组进行授权)

测试通过。
